Central Boiler Heat Exchanger Maintenance
Cleaning the Central Boiler Vertical Heat Exchanger can be a real chore!
Maintenance is Not Sexy!
Say it ain't so. Upon reflection, it seems to me that be it in the workplace, or in life, the steady Eddy gets little credit. When things work, or go according to plan, well, of course that's what we expected. When things fail however, the fixer gets all credit, a big pat on the back, and is called in the next time there is a failure. It's even less glamorous in this life; because I have no one but myself to blame in the event of failure, and then I have to fix it, too.
Vertical Heat Exchanger Maintenance
Let's just say that I did not do much. Okay, it's true. I don't know what I was thinking. I know better. And so, upon start-up this year, the boiler simply could not keep the water temperature much above 155°F. The set-point is 185°F, and the normal operating range is 175°F to 185°F. I suspected a vertical heat exchanger problem as the cause.
Accessing the Vertical Heat Exchanger for Maintenance
Access to the heat exchanger is made through the firebox. Which is to say that you have to get IN the firebox to access the vertical heat exchanger for maintenance. Of course this meant that the boiler was shut down and allowed to cool before maintenance was possible. Then, all of the unburned wood and ash from the firebox was removed.
I'm told that in later iterations of this design Central Boiler has provided access from the outside, at the rear of the boiler, but of course that does me no good. There is a heat shield at the back of the firebox, that basically extends from the bypass door to the floor of the firebox, secured by six cap nuts, with 5/16-18 threads.
To remove the nuts, you need a wire brush, to clean-up the nuts a bit, and a 9/16 inch socket to remove them. The heat shield is in two pieces, one set above the other. Once the heat shield is removed, you need again the wire brush, and a 1/2 inch deep socket to remove the nuts securing the covers, also two, but side-by-side in this case. Removal of the heat shields and covers was surprisingly uneventful.

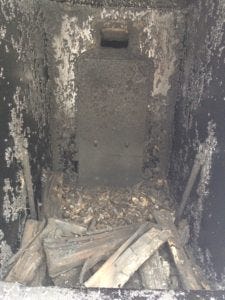

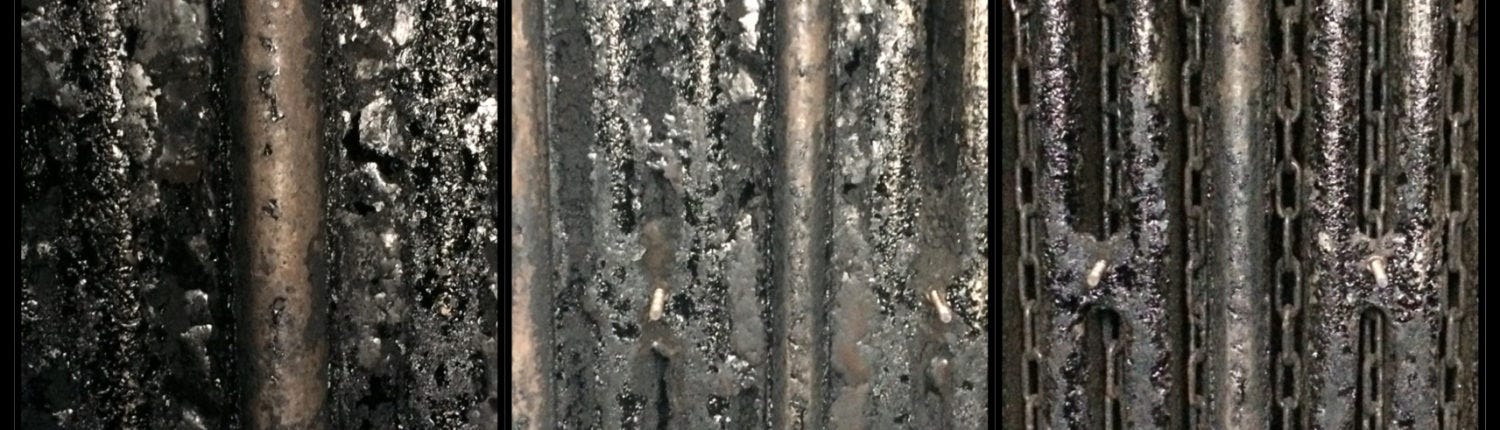

Having completed these two steps, I was confronted by the complete mess I had made of the vertical heat exchanger, which you can see at left in the photo collage atop this post. It's a wonder it was able to keep a fire going at all.
Cleaning the Central Boiler Classic Edge 750 Vertical Heat Exchanger

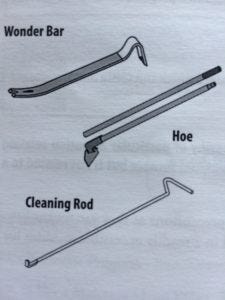

Central Boiler publishes animations and videos of the cleaning process on their website, of course animations and videos of the work being described while looking at a pristine, never seen fire, heat exchanger, is a lot less intimidating than what I faced. Tools are important. And fortunately the special tools I needed were provided with the furnace by Central Boiler:
the Wonderbar, basically a flat pry bar, about 15 inches in length
a Hoe; heavy duty, with a long handle, about 6+ feet
the all-important "cleaning rod," also 6+ feet in length
and stamina
The cleaning rod was especially useful, as it allowed me to clean between the heat exchanger "fins" while standing outside, at the door opening to the firebox. There is also some access to the bottom of the vertical heat exchanger through the "Reaction Chamber," this section is again cleaned using the "cleaning rod." It took me about 5 hours start to finish.
Lesson Learned: Do the Maintenance!
How many times do I need to suffer this sort of consequence. You'd think I'd have learned by now. And you might have noticed in the photo collage at the top of the post, in the right image, some chains hanging between the "fins." Those are to be used frequently, weekly is specified, to remove still-loose ash from the vertical heat exchanger, before the mess develops. Interesting note, you actually have to USE the chain cleaner to gain the benefit. #whodathunkit
Vertical Heat Exchanger Maintenance Done
The Central Boiler is cookin'! Reaction Chamber temps of over 1,300°F are seen. Burns hot and fast, very efficiently. No problem maintaining comfortable temps in the home.
